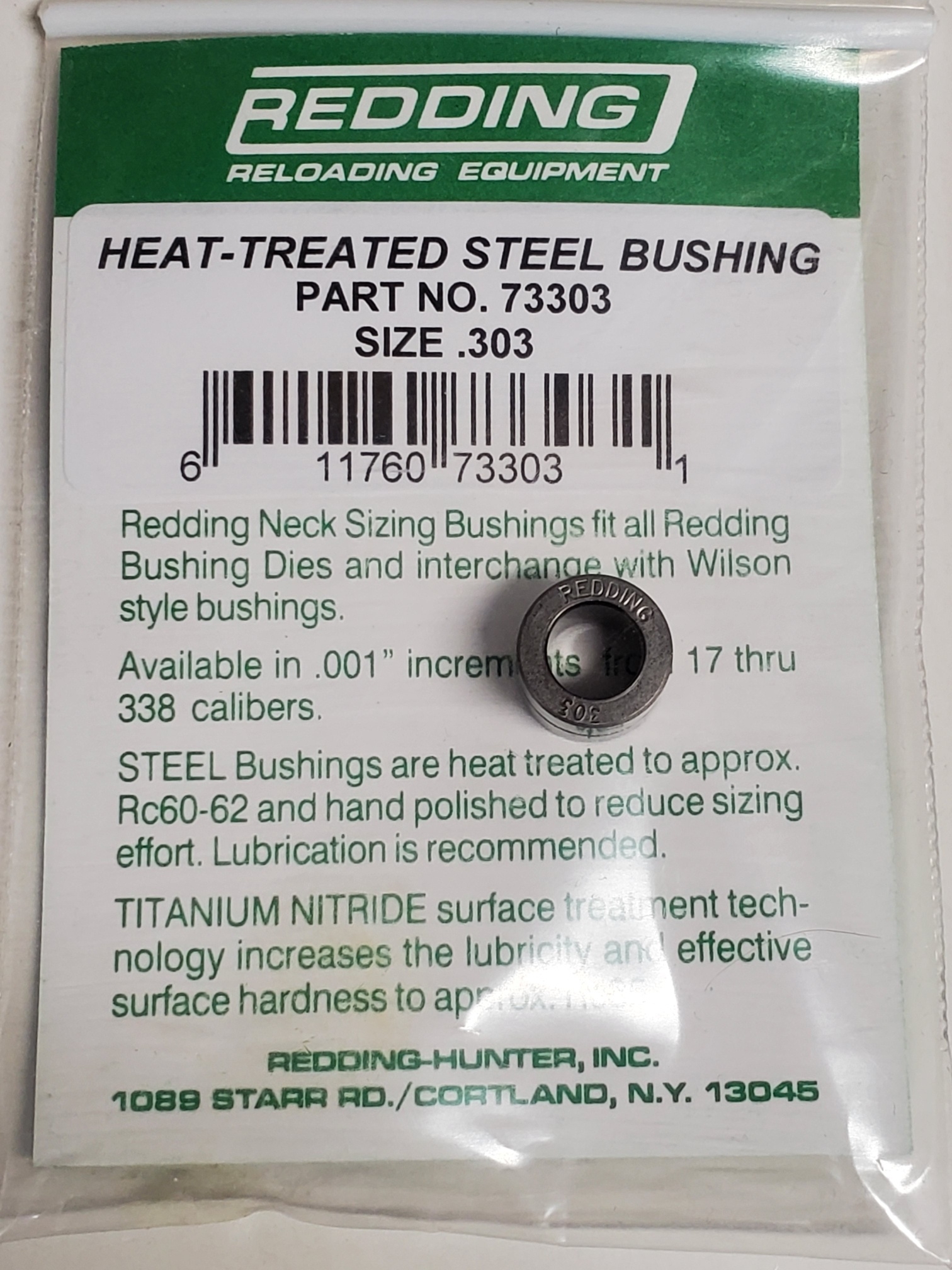

73303 Redding Heat Treated Steel .303 Neck Size Bushing

Heat treated steel. The sizing diameters are hand-polished with a surface hardness of Rc 60-62 to reduce sizing effort.

Sizes from .185″ to .368″ in .001″ increments.

The easiest way to determine the proper diameter bushing is to measure the neck diameter of several loaded or dummy cartridges with an accurate micrometer. (These dummy cartridges can be loaded with your old set of dies or a borrowed set.) Then, simply subtract 0.001″ from the cartridge that had the smallest average measurement. This will allow for a slight amount of spring back and create a proper press fit for the bullet.

Another method of determining bushing size, is to measure the neck wall thickness of the cartridge cases with a ball type or tubing micrometer. Double this measurement and add the bullet diameter to calculate the neck diameter of a loaded cartridge. As above, subtract 0.001″ from this figure to determine bushing size. This method is the least desirable of the two, as a ball micrometer is fairly expensive and more difficult to read consistently than a conventional micrometer.

If you’re starting with new cases, the neck wall thickness can be determined as above with a ball micrometer, or you can seat boat-tail bullets in a few cases and measure their neck diameter. Generally, the neck diameter of new cases is small enough to hold a bullet without sizing. As a last resort, you can measure the neck wall thickness of the cases with a caliper. Be aware that you may not select the correct bushing on the first try when using a caliper to measure neck wall thickness, due to the reduced measuring accuracy of the caliper.

The above methods of determining bushing size require that the cases being sized have a fairly uniform neck wall thickness or have been neck turned. If the neck wall thickness varies more than 0.002″, it may be necessary to use a bushing a couple of thousandths smaller than your calculations indicate, and then use a size button in the die to determine the final inside neck diameter.

Die NOT included.
